About this item
- ZWO ASI662MC color astronomy camera for capturing images of planets and the moon through a telescope on a motorized equatorial mount; also works for white light images the sun with safe solar filter (not included)
- Advanced IMX662 CMOS sensor with 1920x1080 (2.1 megapixel) resolution and 2.9 micron pixels to capture fine detail; sensor is highly sensitive in the infrared to help with capturing more planetary detail; camera design features zero amp glow for clean, low-noise images
- Fast USB3.0 transfer at up to 102.6 frames per second at maximum resolution; includes separate USB2.0 hub for powering accessories such as autoguiding camera and electronic focuser (not included)
- included) Compact, lightweight, and attractive red anodized CNC aluminum body stands up to heavy field use; Connects to 1.25” and 2” telescope focusers with included T-threaded 1.25” nosepiece
- Camera electronics draw power from your computer’s USB3.0 interface; All software and drivers are available from the manufacturer’s website; compatible with Mac OS X and Windows (32-bit and 64-bit)

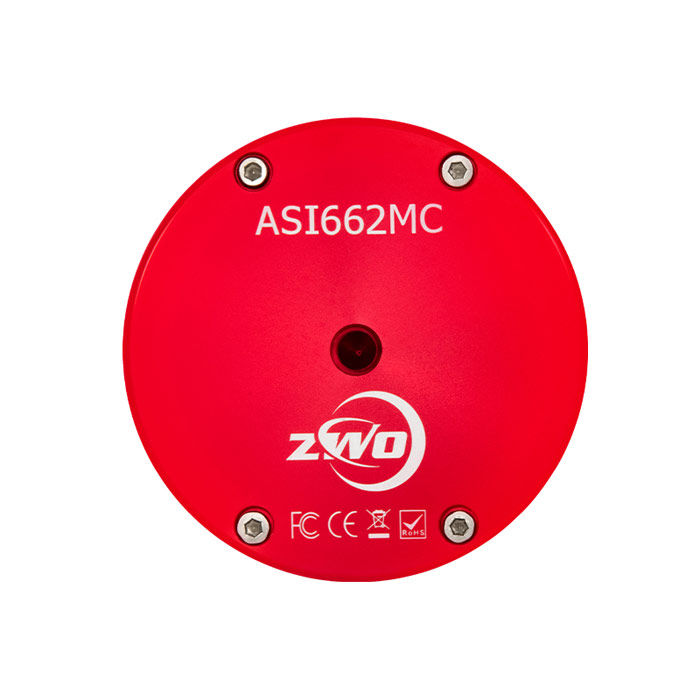

ZWO ASI662MC Camera
SKU Number
ZWO-ASI662MC Model Number
ASI662MC Imaging Camera Series
ZWO ASI662 Color, Mono or Polarized Camera Color Cooled or Uncooled Camera
Uncooled Pixel Size in Microns
2.9 Pixel Array & Resolution
1920 x 1080 (2.1 MP) Camera Sensor Manufacturer
Sony Sensor Type - CMOS, CCD
CMOS Sensor Size - APS-C, etc.
1/2.8" Front or Back Illuminated Sensor
BSI (Back Illuminated Sensor Dimensions (mm x mm)
5.6 x 3.1 Sensor Diagonal (mm)
6.45 Includes Guide Sensor?
No Includes Anti-Dew Heater?
No Includes Humidity Sensor?
No Built-in Image Buffer?
Yes: 256MB DDR3 Memory Peak Quantum Efficiency (QE)
91% Native Bit Depth
12 Max FPS or Full Frame Rate
107.6 ROI (Region of Interest) Support?
Yes Full Well
38.2ke Amp Glow Control
Zero Amplifier Glow Readout Noise
0.8e Minimum Exposure
32μs Maximum Exposure
2000s Shutter
Electronic Rolling Shutter ST-4 Type Guide Port?
Yes Native Back Focus (mm)
12.5 Camera Window
IR Computer Interface
USB 3.0 or USB 2.0 Telescope Interface Thread Type (with proper adapters)
M42 On Camera Storage/Non-Volatile Memory
192k Working Temperature
-5℃~50℃ Storage Temperature
-10℃~60℃ Working Relative Humidity
0-80% Camera Dimensions
5.57mm x 3.13mm Camera Weight (lb.)
0.3 OS Compatibility
WIN7/8/10 (32 and 64-bit), Linux, Mac Warranty ZWO - 2 Years
